Android example

This tutorial walks through building a full Android chat app for ELIZA, a classic natural-language processor that runs at demo.connectrpc.com. If you just want to see Connect-Kotlin make a request from a Kotlin program, the Getting started quickstart is shorter.

The ELIZA service is implemented using Connect-Go and supports the gRPC, gRPC-Web, and Connect protocols, all of which Connect-Kotlin can talk to.

Prerequisites

Android Studio installed.
The Buf CLI installed, and included in the $PATH.
Set up a virtual device in Android Studio, or use a physical device.

Create a new Android project from Android Studio

Once Android Studio is set up, click New Project in the welcome screen and walk through the wizard:

Under Phone and Tablet, select Empty Views Activity and click Next.

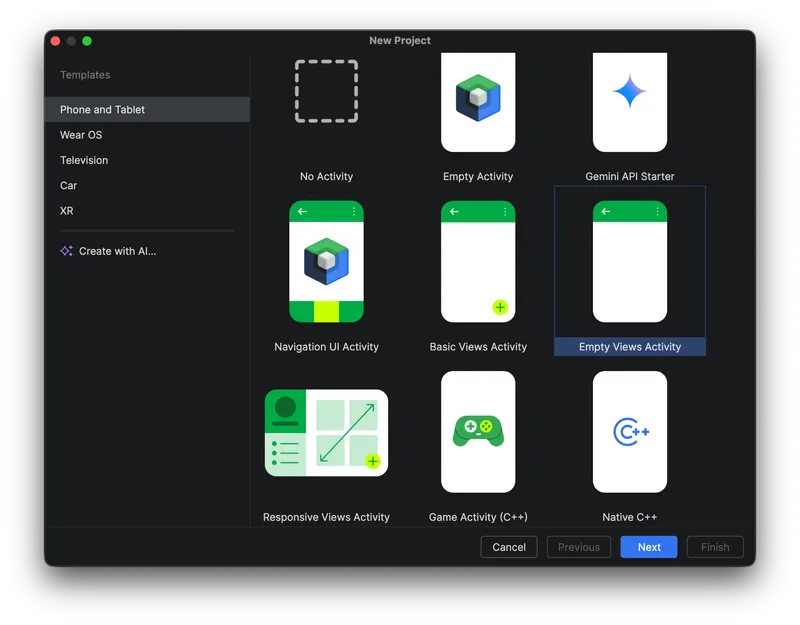

Select Empty Views Activity in Android Studio

Set Name to Eliza and Package name to com.example.eliza. Set Minimum SDK to API 28 (Android 9.0). Leave the defaults for language (Kotlin) and Build configuration language (Kotlin DSL).

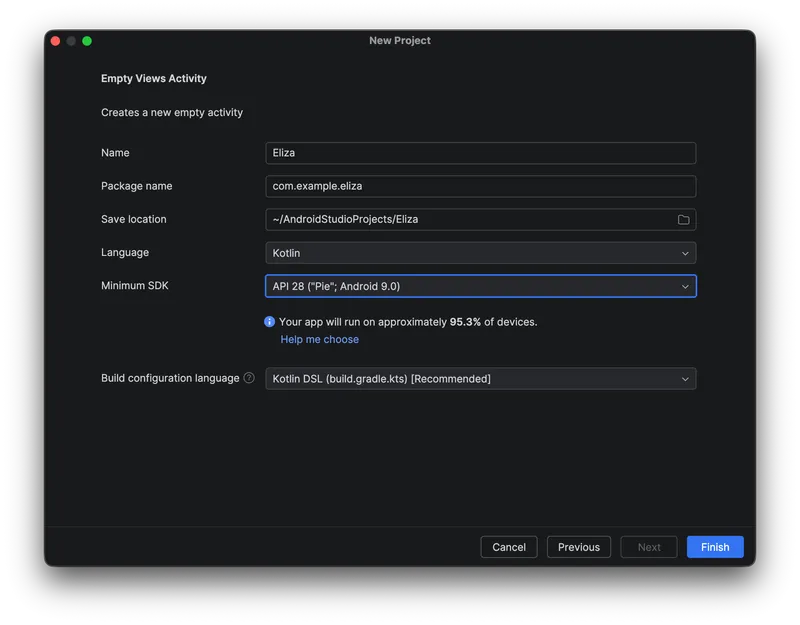

Configure your new Eliza project in Android Studio

Click Finish.

Define a service

Add a Protobuf file with the service definition. We’ll use a stripped-down ELIZA with a single unary RPC. The directory layout must match the Protobuf package, so:

$ mkdir -p proto/connectrpc/eliza/v1
$ touch proto/connectrpc/eliza/v1/eliza.proto

Open the new file and add the following:

syntax = "proto3";

package connectrpc.eliza.v1;

message SayRequest {
  string sentence = 1;
}

message SayResponse {
  string sentence = 1;
}

service ElizaService {
  rpc Say(SayRequest) returns (SayResponse) {}
}

The schema declares one service (ElizaService) with one unary RPC (Say) and the corresponding request/response messages.

Generate code

Generate the code with buf, a modern replacement for protoc. Scaffold buf.yaml with buf config init, then add the proto module:

# For details on buf.yaml configuration, visit https://buf.build/docs/configuration/v2/buf-yaml
version: v2
modules:
  - path: proto
lint:
  use:
    - STANDARD
breaking:
  use:
    - FILE

Define plugins in buf.gen.yaml. We use remote plugins (a Buf Schema Registry feature) so nothing needs to be installed locally:

# For details on buf.gen.yaml configuration, visit https://buf.build/docs/configuration/v2/buf-gen-yaml
version: v2
managed:
  enabled: true
plugins:
  - remote: buf.build/protocolbuffers/java:v34.0
    out: app/src/main/java
    opt: lite
  - remote: buf.build/protocolbuffers/kotlin:v34.0
    out: app/src/main/java
    opt: lite
  - remote: buf.build/connectrpc/kotlin:v0.8.0
    out: app/src/main/java

See the Generating code reference for what each plugin emits and the available options. Lint the schema and run codegen:

$ buf lint
$ buf generate

The generated code lands under app/src/main/java/com/connectrpc/eliza/v1/:

app/src/main/java/com/connectrpc/eliza/v1
├── ElizaProto.java
├── ElizaProtoKt.proto.kt
├── ElizaServiceClient.kt
├── ElizaServiceClientInterface.kt
├── SayRequest.java
├── SayRequestKt.kt
├── SayRequestOrBuilder.java
├── SayResponse.java
├── SayResponseKt.kt
└── SayResponseOrBuilder.java

Update the application dependencies

Now we’ll add the libraries the app needs. Edit app/build.gradle.kts (not the top-level build.gradle.kts in the project root) and replace the dependencies block with:

dependencies {
    // ...
    implementation("androidx.recyclerview:recyclerview:1.3.2")
    implementation("androidx.lifecycle:lifecycle-runtime-ktx:2.8.7")

    implementation("com.squareup.okhttp3:okhttp:4.12.0")
    implementation("com.connectrpc:connect-kotlin-okhttp:0.8.0")
    implementation("com.connectrpc:connect-kotlin-google-javalite-ext:0.8.0")
    implementation("com.google.protobuf:protobuf-javalite:4.34.0")
    implementation("com.google.protobuf:protobuf-kotlin-lite:4.34.0")
}

Sync Gradle once the dependencies are in place.

Set up the resources

Layouts

Create a new file in the layout directory called item.xml to describe a single chat row. The row has a sender label (shown only for Eliza’s messages) and the message text:

$ touch app/src/main/res/layout/item.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:orientation="vertical">
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="vertical"
        android:padding="8dp">
        <TextView
            android:id="@+id/sender_name_text_view"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:text="Eliza"
            android:textColor="#161EDE"
            android:visibility="gone"/>
        <TextView
            android:id="@+id/message_text_view"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:textColor="@android:color/black"/>
    </LinearLayout>
    <View
        android:layout_width="match_parent"
        android:layout_height="1dp"
        android:background="#E0E0E0"/>
</LinearLayout>

Next, replace the contents of activity_main.xml (created by the wizard) with the chat screen layout (a title, the message list, and the input row):

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">
    <TextView
        android:id="@+id/title_text_view"
        android:layout_width="match_parent"
        android:layout_height="48dp"
        android:gravity="center"
        android:text="Eliza"
        android:textSize="18sp"
        android:textStyle="bold"
        app:layout_constraintTop_toTopOf="parent"/>
    <View
        android:id="@+id/title_divider"
        android:layout_width="match_parent"
        android:layout_height="1dp"
        android:background="#E0E0E0"
        app:layout_constraintTop_toBottomOf="@+id/title_text_view"/>
    <androidx.recyclerview.widget.RecyclerView
        android:id="@+id/recycler_view"
        android:layout_width="match_parent"
        android:layout_height="0dp"
        app:layoutManager="LinearLayoutManager"
        app:layout_constraintTop_toBottomOf="@+id/title_divider"
        app:layout_constraintBottom_toTopOf="@+id/edit_text_view"/>
    <EditText
        android:id="@+id/edit_text_view"
        android:layout_width="0dp"
        android:layout_height="wrap_content"
        android:autofillHints="text"
        android:inputType="text"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintEnd_toStartOf="@+id/send_button"/>
    <Button
        android:id="@+id/send_button"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Send"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"/>
</androidx.constraintlayout.widget.ConstraintLayout>

Manifest

The wizard’s AndroidManifest.xml doesn’t request network access. Add the two uses-permission declarations:

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android">

    <uses-permission android:name="android.permission.INTERNET"/>
    <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE"/>

    <application
        android:allowBackup="true"
        android:label="@string/app_name"
        android:theme="@style/Theme.AppCompat.Light.NoActionBar">
        <activity
            android:name=".MainActivity"
            android:exported="true">
            <intent-filter>
                <action android:name="android.intent.action.MAIN"/>
                <category android:name="android.intent.category.LAUNCHER"/>
            </intent-filter>
        </activity>
    </application>
</manifest>

Android Kotlin view scaffolding

To render the chat list we need a RecyclerView.Adapter and ViewHolder. Add a new file:

$ touch app/src/main/java/com/example/eliza/ChatRecycler.kt

package com.example.eliza

import android.view.Gravity
import android.view.LayoutInflater
import android.view.View
import android.view.ViewGroup
import android.widget.LinearLayout
import android.widget.TextView
import androidx.recyclerview.widget.RecyclerView

class Adapter : RecyclerView.Adapter<ViewHolder>() {

    private val messages = mutableListOf<MessageData>()

    fun add(message: MessageData) {
        messages.add(message)
        notifyItemInserted(messages.size - 1)
    }

    override fun onCreateViewHolder(viewGroup: ViewGroup, viewType: Int): ViewHolder {
        val view = LayoutInflater.from(viewGroup.context)
            .inflate(R.layout.item, viewGroup, false)
        return ViewHolder(view)
    }

    override fun onBindViewHolder(viewHolder: ViewHolder, position: Int) {
        val data = messages[position]
        viewHolder.messageTextView.text = data.message
        val params = viewHolder.messageTextView.layoutParams as LinearLayout.LayoutParams
        params.gravity = if (data.isEliza) Gravity.START else Gravity.END
        viewHolder.messageTextView.layoutParams = params
        viewHolder.senderNameTextView.visibility =
            if (data.isEliza) View.VISIBLE else View.GONE
    }

    override fun getItemCount(): Int = messages.size
}

class ViewHolder(view: View) : RecyclerView.ViewHolder(view) {
    val senderNameTextView: TextView = view.findViewById(R.id.sender_name_text_view)
    val messageTextView: TextView = view.findViewById(R.id.message_text_view)
}

data class MessageData(
    val message: String,
    val isEliza: Boolean,
)

Talk with Eliza

Now we’re ready to wire up the network code. Open MainActivity.kt and replace its contents with:

package com.example.eliza

import android.os.Bundle
import android.util.Log
import android.widget.Button
import android.widget.EditText
import android.widget.TextView
import androidx.appcompat.app.AppCompatActivity
import androidx.lifecycle.lifecycleScope
import androidx.recyclerview.widget.RecyclerView
import com.connectrpc.ProtocolClientConfig
import com.connectrpc.eliza.v1.ElizaServiceClient
import com.connectrpc.eliza.v1.sayRequest
import com.connectrpc.extensions.GoogleJavaLiteProtobufStrategy
import com.connectrpc.impl.ProtocolClient
import com.connectrpc.okhttp.ConnectOkHttpClient
import com.connectrpc.protocols.NetworkProtocol
import kotlinx.coroutines.Dispatchers
import kotlinx.coroutines.launch

class MainActivity : AppCompatActivity() {

    private val adapter: Adapter = Adapter()
    private lateinit var titleTextView: TextView
    private lateinit var editTextView: EditText
    private lateinit var buttonView: Button
    private lateinit var elizaServiceClient: ElizaServiceClient

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)
        editTextView = findViewById(R.id.edit_text_view)
        titleTextView = findViewById(R.id.title_text_view)
        buttonView = findViewById(R.id.send_button)
        // Default question to ask as a pre-fill.
        editTextView.setText("I had a strange dream last night.")
        val recyclerView = findViewById<RecyclerView>(R.id.recycler_view)
        recyclerView.adapter = adapter

        // Create a ProtocolClient.
        val client = ProtocolClient(
            httpClient = ConnectOkHttpClient(),
            ProtocolClientConfig(
                host = "https://demo.connectrpc.com",
                serializationStrategy = GoogleJavaLiteProtobufStrategy(),
                networkProtocol = NetworkProtocol.CONNECT,
                // Dispatch RPC I/O on Dispatchers.IO.
                ioCoroutineContext = Dispatchers.IO,
            ),
        )
        // Create the Eliza service client.
        elizaServiceClient = ElizaServiceClient(client)

        // Set up click listener to make a request to Eliza.
        buttonView.setOnClickListener {
            val sentence = editTextView.text.toString()
            adapter.add(MessageData(sentence, false))
            editTextView.setText("")

            lifecycleScope.launch {
                val response = elizaServiceClient.say(sayRequest { this.sentence = sentence })
                val elizaSentence = response.success { success ->
                    success.message.sentence
                }
                response.failure { failure ->
                    Log.e("MainActivity", "Failed to talk to eliza", failure.cause)
                }
                displayElizaResponse(elizaSentence)
            }
        }
    }

    private fun displayElizaResponse(sentence: String?) {
        if (!sentence.isNullOrBlank()) {
            adapter.add(MessageData(sentence, true))
        } else {
            adapter.add(MessageData("...No response from Eliza...", true))
        }
    }
}

Run the app

Build and run via the play button in Android Studio.
